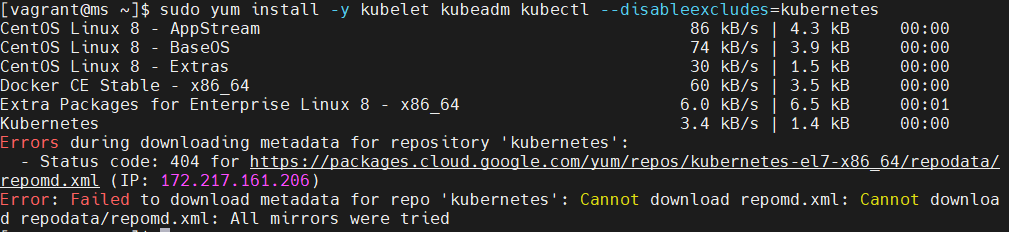

▩ kubectl 이 다운로드가 안되었다
[vagrant@ms ~]$ sudo find / -name kubectl
[vagrant@ms ~]$
▷install_cluster.sh 에서 kubernetes.repo 부분이 작동이 안된듯 하다
더보기
### bash script for install kubernetes cluster
#Set the time zone to local time and set the exact time
timedatectl set-timezone Asia/Seoul
yum install -y yum-utils
modprobe overlay
modprobe br_netfilter
yum install -y iproute-tc
cat <<EOF | tee /etc/modules-load.d/containerd.conf
overlay
br_netfilter
EOF
cat <<EOF | tee /etc/sysctl.d/99-kubernetes-cri.conf
net.bridge.bridge-nf-call-iptables = 1
net.ipv4.ip_forward = 1
net.bridge.bridge-nf-call-ip6tables = 1
EOF
# apply the 99-kubernetes-cri.conf file immediately
sysctl --system
# disable firewall
systemctl disable firewalld
systemctl stop firewalld
yum-config-manager \
--add-repo \
yum install -y containerd.io
mkdir -p /etc/containerd
containerd config default | tee /etc/containerd/config.toml
sed -i 's/SystemdCgroup = false/SystemdCgroup = true/g' /etc/containerd/config.toml
systemctl restart containerd
systemctl enable containerd
# disable selinux
setenforce 0
sed -i 's/^SELINUX=enforcing/SELINUX=permissive/' /etc/selinux/config
cat <<EOF | tee /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
enabled=1
gpgcheck=1
gpgkey=https://packages.cloud.google.com/yum/doc/yum-key.gpg https://packages.cloud.google.com/yum/doc/rpm-package-key.gpg
exclude=kubelet kubeadm kubectl
EOF
yum install -y kubelet kubeadm kubectl \
--disableexcludes=kubernetes
systemctl enable --now kubelet
# disable swap space
swapoff -a
sed -e '/swap/s/^/#/' -i /etc/fstab
# add cluster nodes in the hosts file
tee /etc/hosts <<EOF
127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4
:1 localhost localhost.localdomain localhost6 localhost6.localdomain6
EOF
echo "192.168.98.10 ms.example.com ms" >> /etc/hosts
echo "192.168.98.20 wk1.example.com wk1" >> /etc/hosts
echo "192.168.98.30 wk2.example.com wk2" >> /etc/hosts
▩ kubelet 직접 설치 >> 불가능
▶ repo 가 바뀌었다 ( 최신버전 )
cat <<EOF | sudo tee /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
baseurl=https://pkgs.k8s.io/core:/stable:/v1.29/rpm/
enabled=1
gpgcheck=1
gpgkey=https://pkgs.k8s.io/core:/stable:/v1.29/rpm/repodata/repomd.xml.key
EOF
▶ install_cluster.sh 수정
더보기
### bash script for install kubernetes cluster
#Set the time zone to local time and set the exact time
timedatectl set-timezone Asia/Seoul
yum install -y yum-utils
modprobe overlay
modprobe br_netfilter
yum install -y iproute-tc
cat <<EOF | tee /etc/modules-load.d/containerd.conf
overlay
br_netfilter
EOF
cat <<EOF | tee /etc/sysctl.d/99-kubernetes-cri.conf
net.bridge.bridge-nf-call-iptables = 1
net.ipv4.ip_forward = 1
net.bridge.bridge-nf-call-ip6tables = 1
EOF
# apply the 99-kubernetes-cri.conf file immediately
sysctl --system
# disable firewall
systemctl disable firewalld
systemctl stop firewalld
yum-config-manager \
--add-repo \
yum install -y containerd.io
mkdir -p /etc/containerd
containerd config default | tee /etc/containerd/config.toml
sed -i 's/SystemdCgroup = false/SystemdCgroup = true/g' /etc/containerd/config.toml
systemctl restart containerd
systemctl enable containerd
# disable selinux
setenforce 0
sed -i 's/^SELINUX=enforcing/SELINUX=permissive/' /etc/selinux/config
cat <<EOF | sudo tee /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
enabled=1
gpgcheck=1
EOF
yum install -y kubelet kubeadm kubectl \
--disableexcludes=kubernetes
systemctl enable --now kubelet
# disable swap space
swapoff -a
sed -e '/swap/s/^/#/' -i /etc/fstab
# add cluster nodes in the hosts file
tee /etc/hosts <<EOF
127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4
:1 localhost localhost.localdomain localhost6 localhost6.localdomain6
EOF
echo "192.168.98.10 ms.example.com ms" >> /etc/hosts
echo "192.168.98.20 wk1.example.com wk1" >> /etc/hosts
echo "192.168.98.30 wk2.example.com wk2" >> /etc/hosts
● powershell 에서 vagrant provision 으로 다시 올린다
▩ 아래와 같은 오류로 잘 안될 때가 있는데 그럴 때에는 캐시를 삭제하고 다시 provision 해보자
E0307 12:57:47.309816 7240 memcache.go:265]
couldn't get current server API group list:
Get "http://localhost:8080/api?timeout=32s":
dial tcp 127.0.0.1:8080: connect: connection refused
sudo rm -r /var/cache/dnf
● kubernetes 정상 작동
[vagrant@ms ~]$ kubectl get nodes
NAME STATUS ROLES AGE VERSION
ms.example.com Ready control-plane 97s v1.29.2
wk1.example.com Ready <none> 74s v1.29.2
wk2.example.com Ready <none> 68s v1.29.2
# kubeadm 이 설치하기 가장 편리할 듯 하다
https://kubernetes.io/ko/docs/setup/production-environment/tools/kubeadm/install-kubeadm/
● kubectl 자동완성 안될 때 다시 확인
>> .bashrc 가 프로비전 3번했더니 3개가 생겼다
>> 그냥 source .bashrc 입력하여 해결하자
[vagrant@ms ~]$ cat .bashrc
# .bashrc
# Source global definitions
if [ -f /etc/bashrc ]; then
. /etc/bashrc
fi
# User specific environment
if ! [[ "$PATH" =~ "$HOME/.local/bin:$HOME/bin:" ]]
then
PATH="$HOME/.local/bin:$HOME/bin:$PATH"
fi
export PATH
# Uncomment the following line if you don't like systemctl's auto-paging feature:
# export SYSTEMD_PAGER=
# User specific aliases and functions
source <(kubectl completion bash)
source <(kubectl completion bash)
source <(kubectl completion bash)
